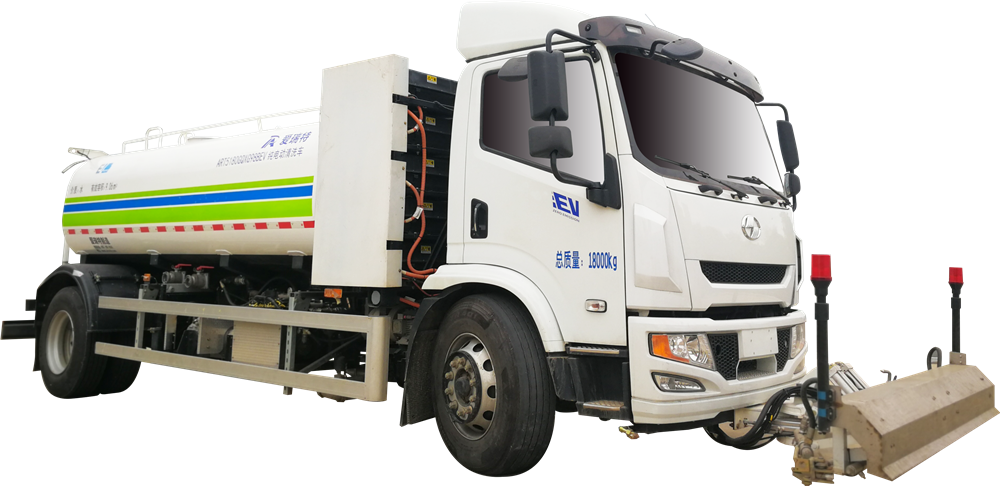

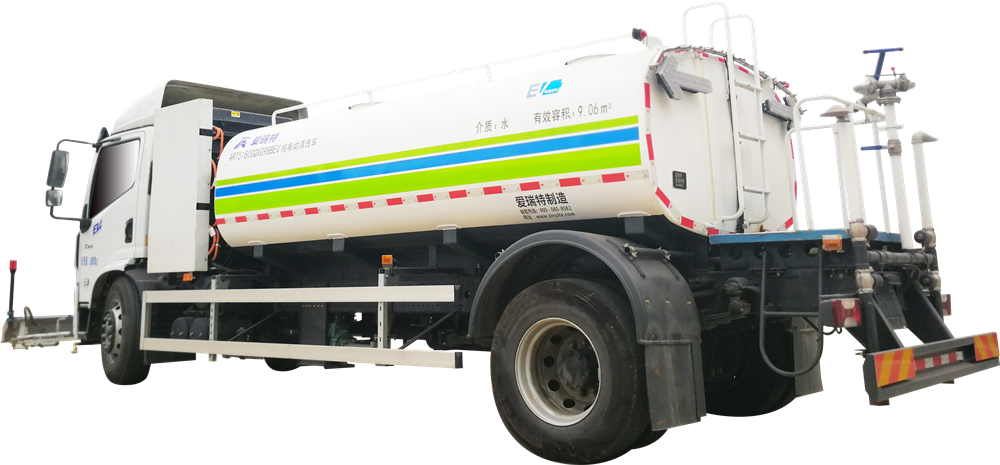

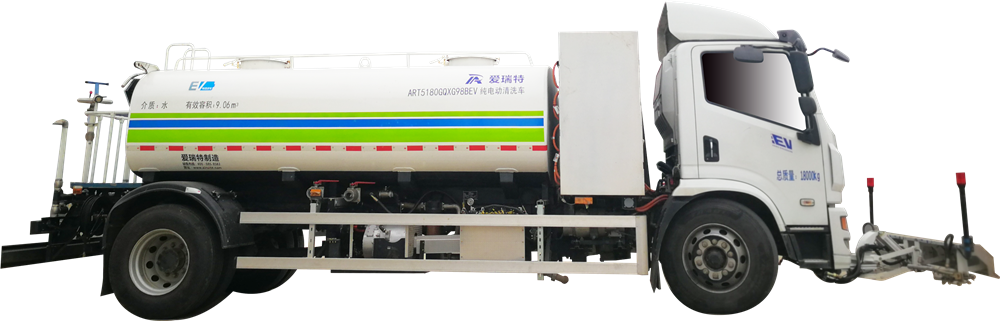

Ruibao G92 pure electric cleaning vehicle

< >

Field of application

ART5180GQXG92BEV Pure electric cleaning vehicle is used for cleaning urban roads, squares, expressways and large factories. It has low cost and zero emission.

Product highlights

Tank body: it is made of high-quality q355 carbon steel plate. The water tank is built with a wave proof plate. Two Manholes with a size of not less than 500mm are set on the top. Handrails or escalators are equipped near the manhole, and the hole cover is provided with hinges and locking devices. The tank body is provided with a sewage outlet and an overflow outlet;

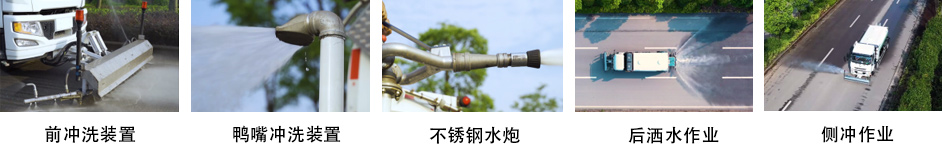

Cleaning system: there are 6 electric controls for middle hedge, rear sprinkler and left and right greening irrigation, and a manually controlled sprinkler on the rear platform (manually controlling the rotation and opening and closing of ball valve);

Waterway system: it has two independent high-pressure and low-pressure waterway systems, using DC motor to drive high-pressure water pump and working device, power take-off to drive low-pressure water pump, high-pressure cleaning and low-pressure spraying;

Electrical control: the cab of the system is equipped with an operating system. The operating mode is a touch screen with can communication function, which can operate the high and low voltage waterway system in the cab;


Product function


technical parameter

Entry name

Company

Parameter

Chassis model / brand

/

EQ1180GTZEVJ1/East wind

Total mass

kg

18000

Curb weight

kg

10000

Wheelbase

mm

5300

Battery brand

/

Ningde times (lithium iron phosphate)

Battery capacity

kWh

314.36

Range

km

301(Working condition method)

Maximum speed

km/h

89

Maximum climbing gradient

%

30

Minimum turning radius

m

8.5/9.5

Tank volume

m3

8.19

High pressure pump model


Italy Pratissoli

High pressure pump pressure

MPa

14

High pressure cleaning width

m

2.5-3.5

Swing angle of front water spray frame

°

About30

Overall dimension(L × W × H)

mm

9380×2500×2970
